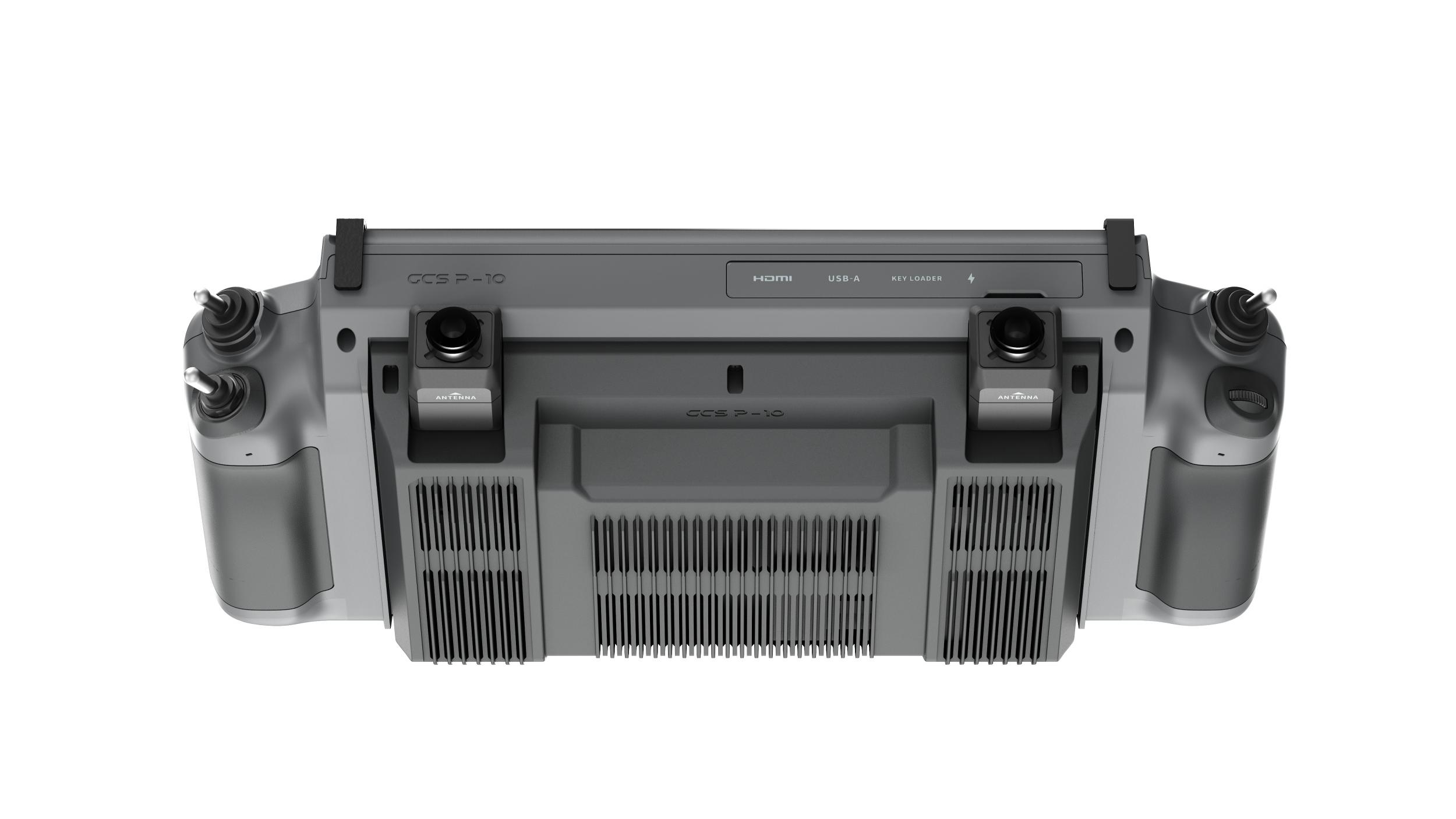

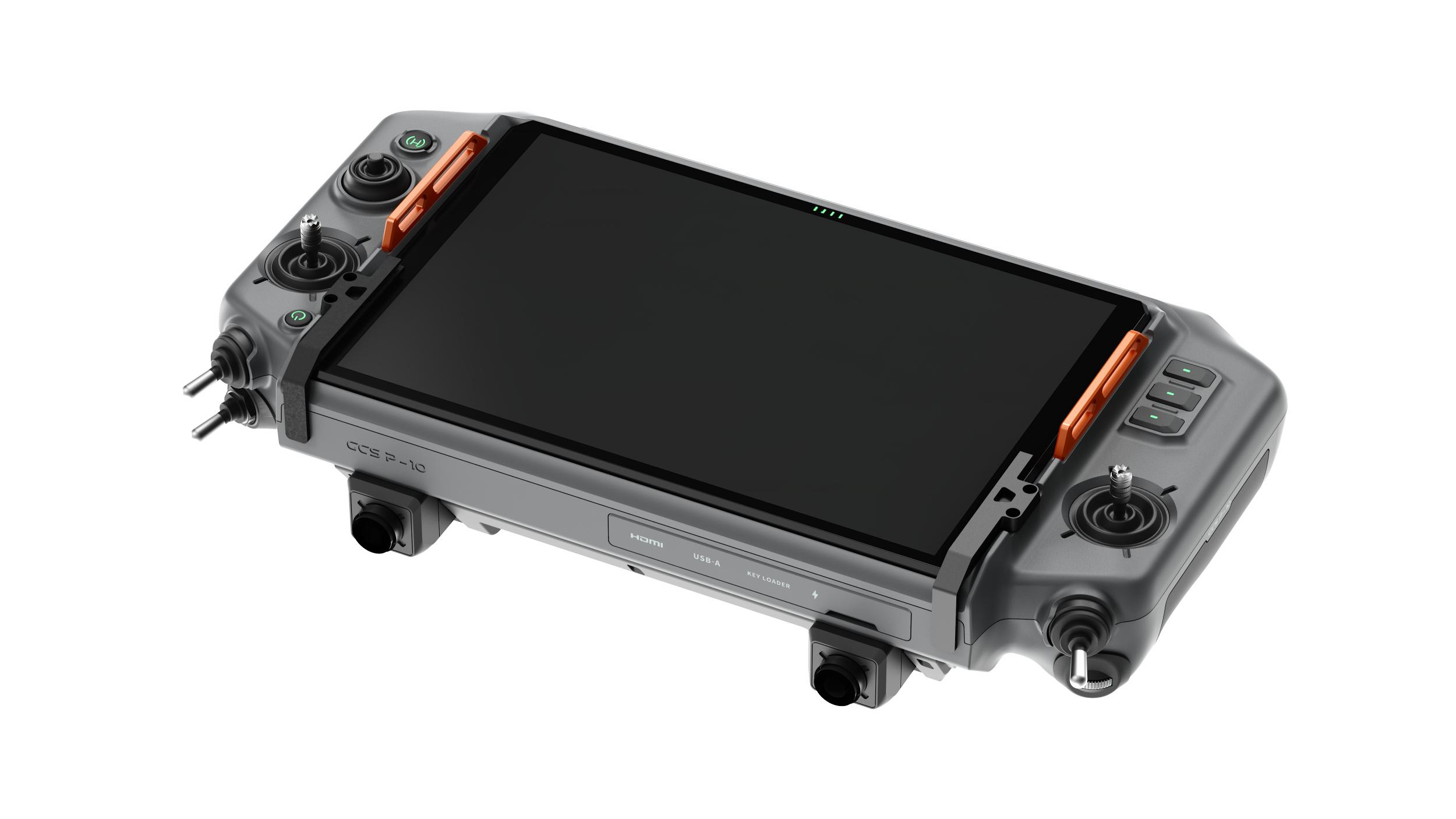

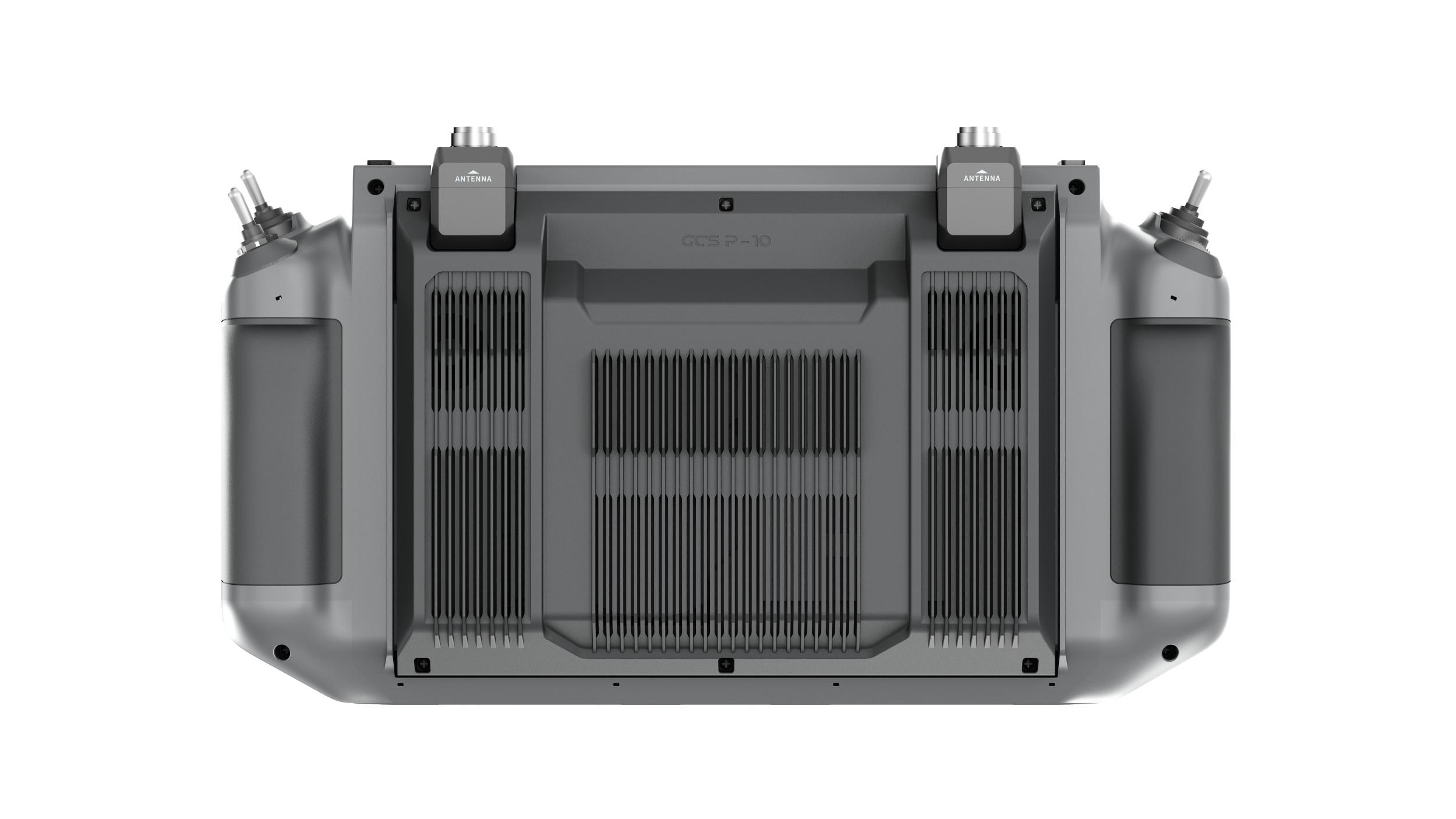

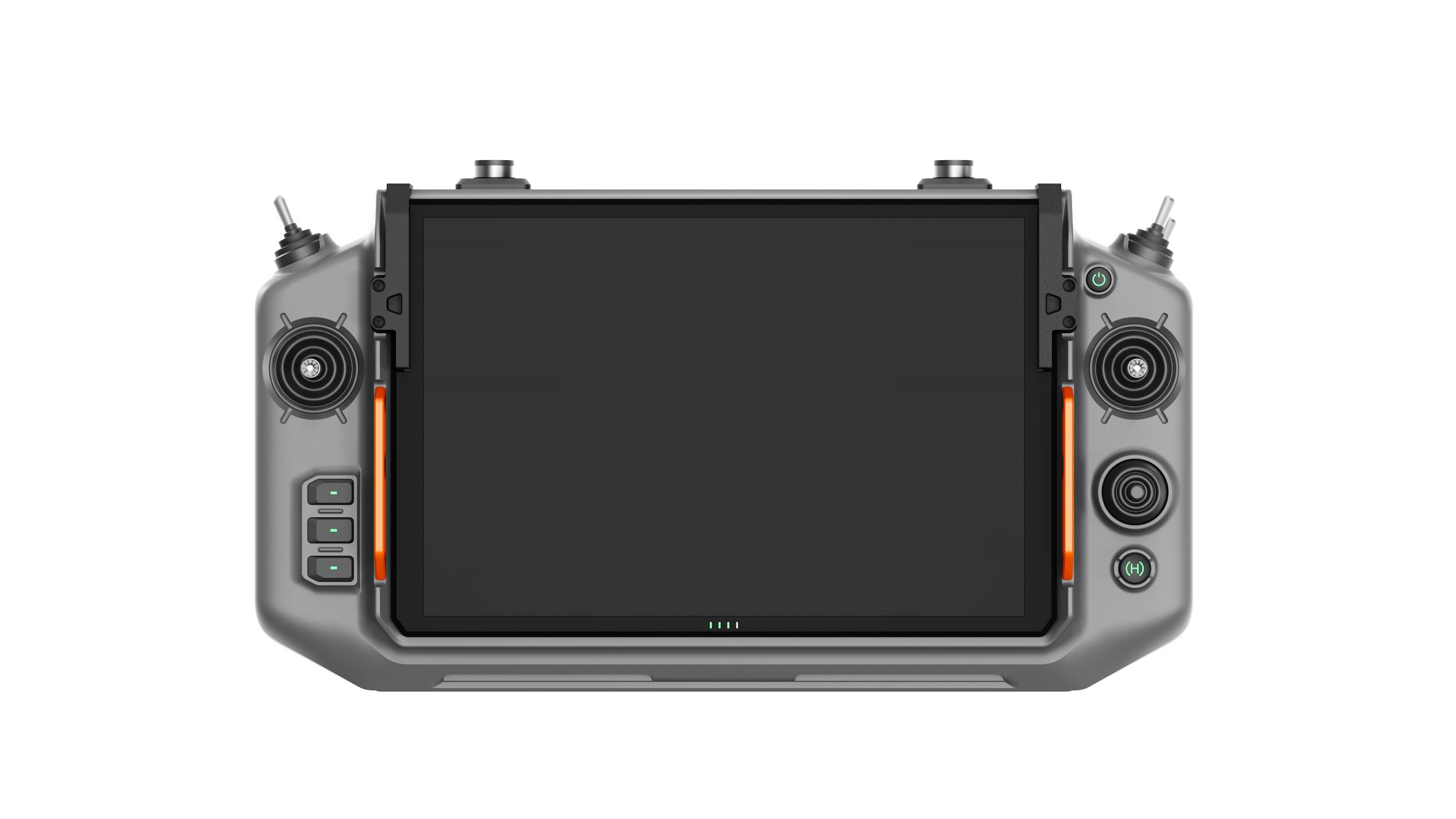

D-GCS-P10
High-End Portable GCS with High-Performance Architecture and 10.1” Large Display
A premium portable GCS equipped with a high-performance PC architecture and a 10.1-inch 1000-nit industrial display, delivering real-time, low-latency high-definition video output.
The precision analog control system ensures stable and professional-grade operation.
Core Product Identity
· Premium 10-inch Portable GCS combining high-performance architecture with a large display
· Built with a high-performance, high-spec PC configuration, enabling stable, real-time transmission of high-resolution camera video without latency (10.1”)
· Features a 10.1-inch high-brightness (1000 nits) touchscreen display, ensuring clear visibility even under direct sunlight
· Equipped with a precision analog-input joystick, delivering fine and accurate control comparable to that of professional drone pilots
D-GCS-P10 Channel
S-Grip Ergonomic Structure
Optimized S-Grip ergonomic design based on professional pilot feedback
Human-Centered Design
· S-Grip Ergonomic Structure
· Extended Operation Architecture
· External Output & Secure Data Handling
· Accessory Expansion (Optional)

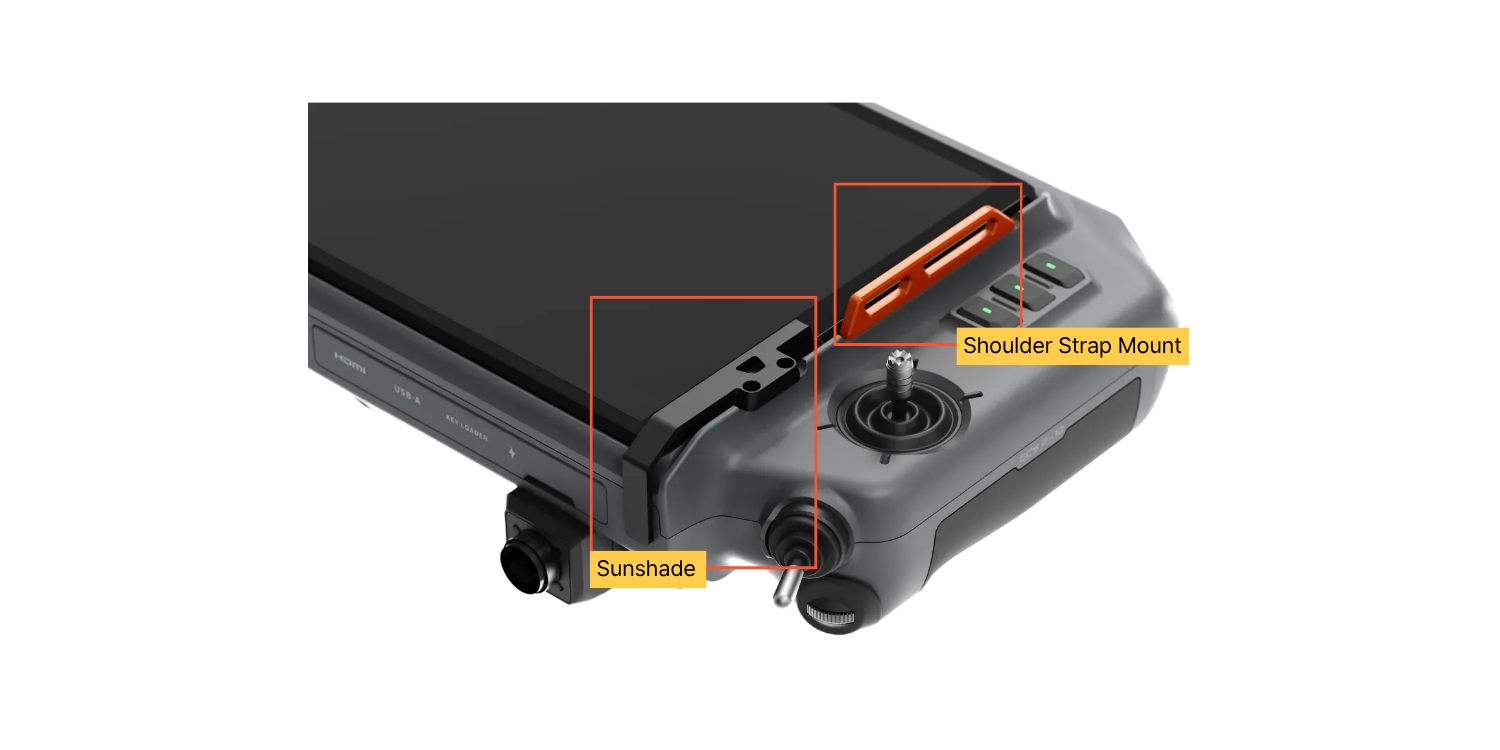

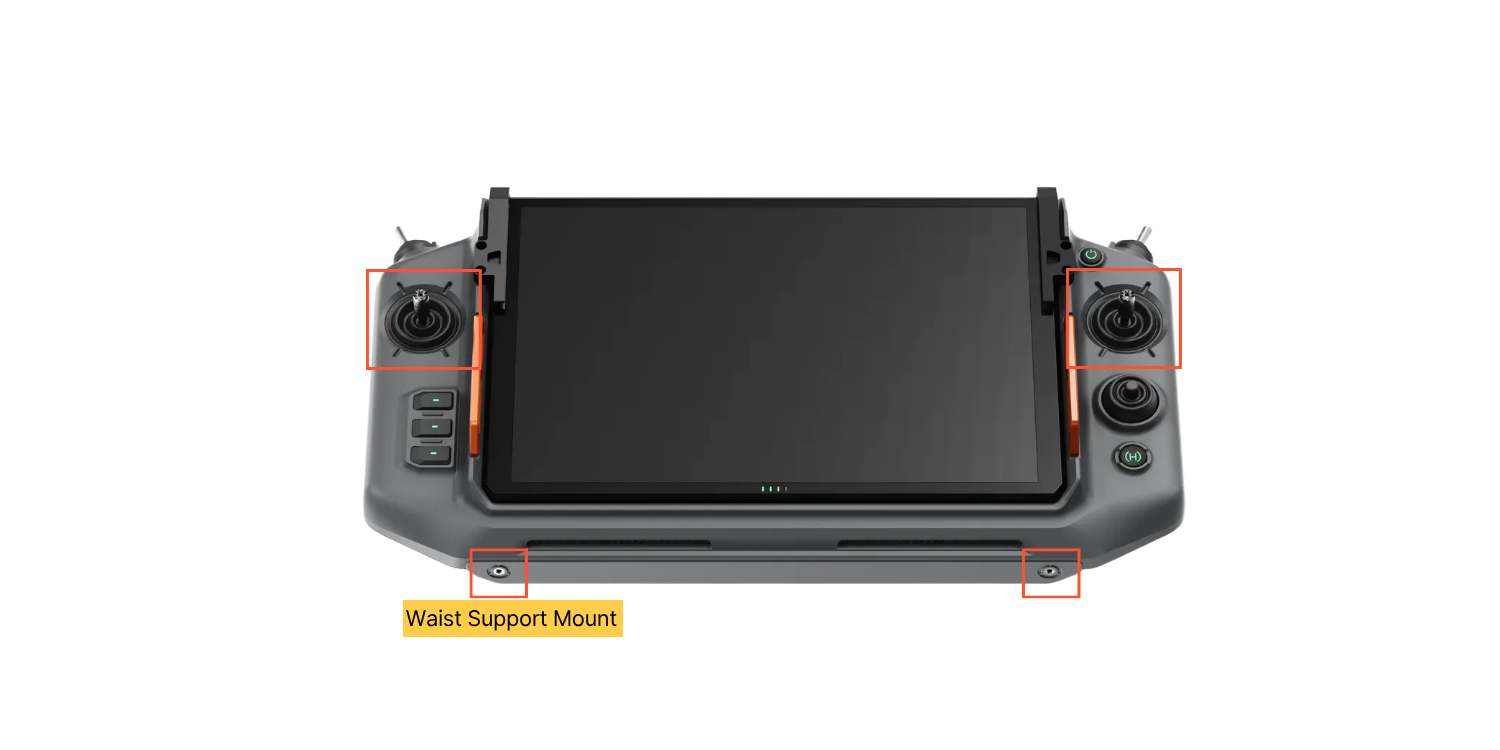

Accessory Expansion (Optional)
Expandable accessory modules including shoulder strap and waist support system

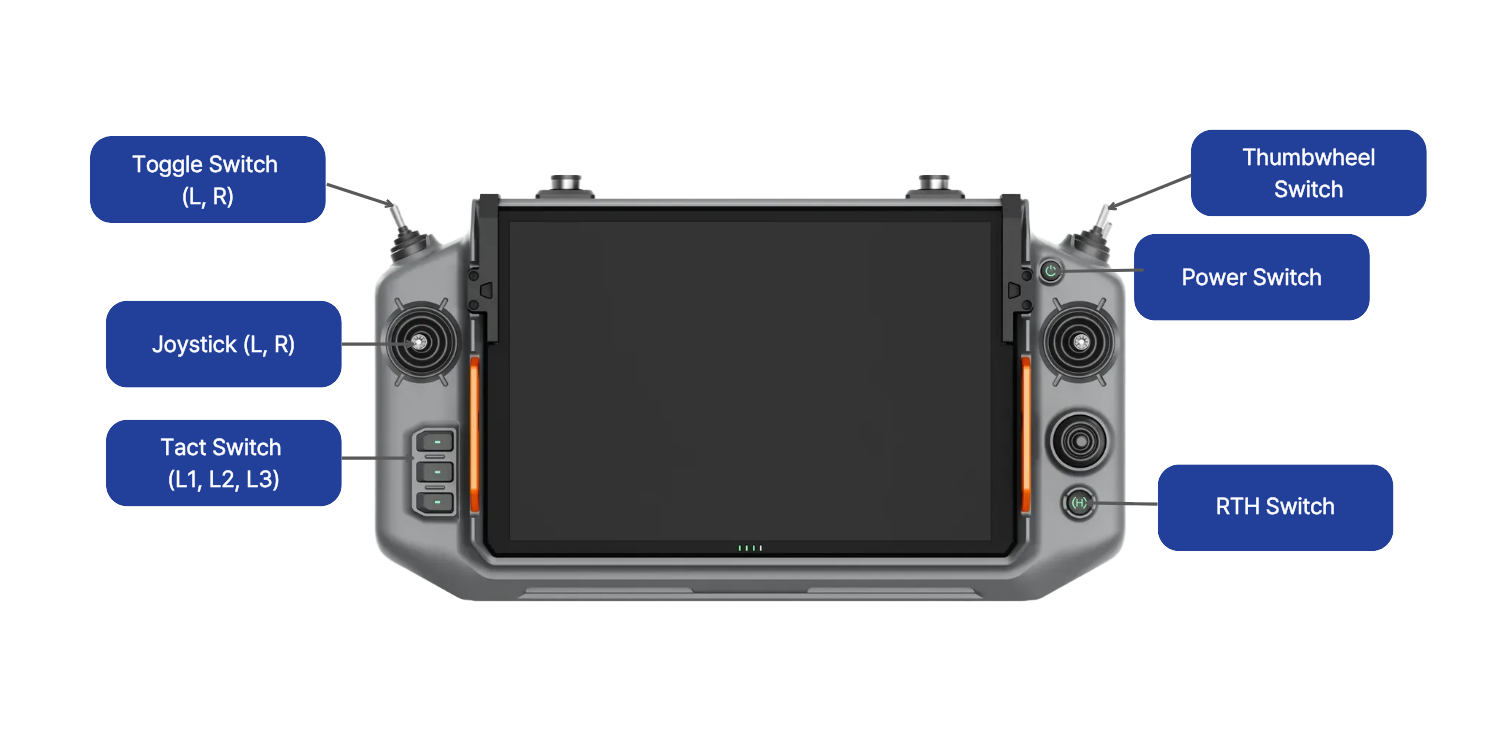

Precision Analog Control System
High-precision analog input joysticks for refined and accurate control
Modular System Architecture
· Security Module Integration
· Interchangeable Communication Interface
· Modular Component Structure
· Configurable Control Modules
· Antenna · Interface Flexibility

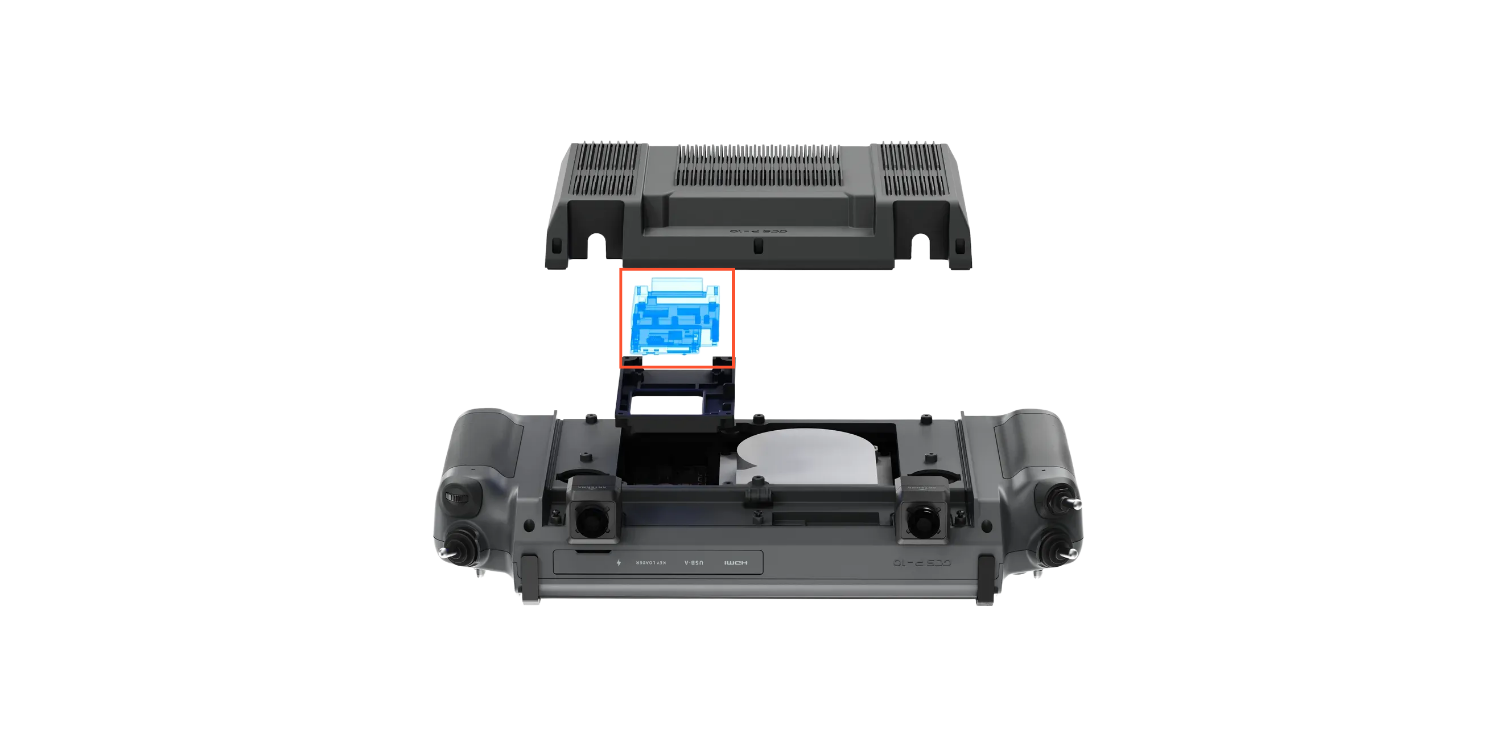

Interchangeable Communication Interface
Rear cover access allowing configurable UART, USB, and Serial interfaces

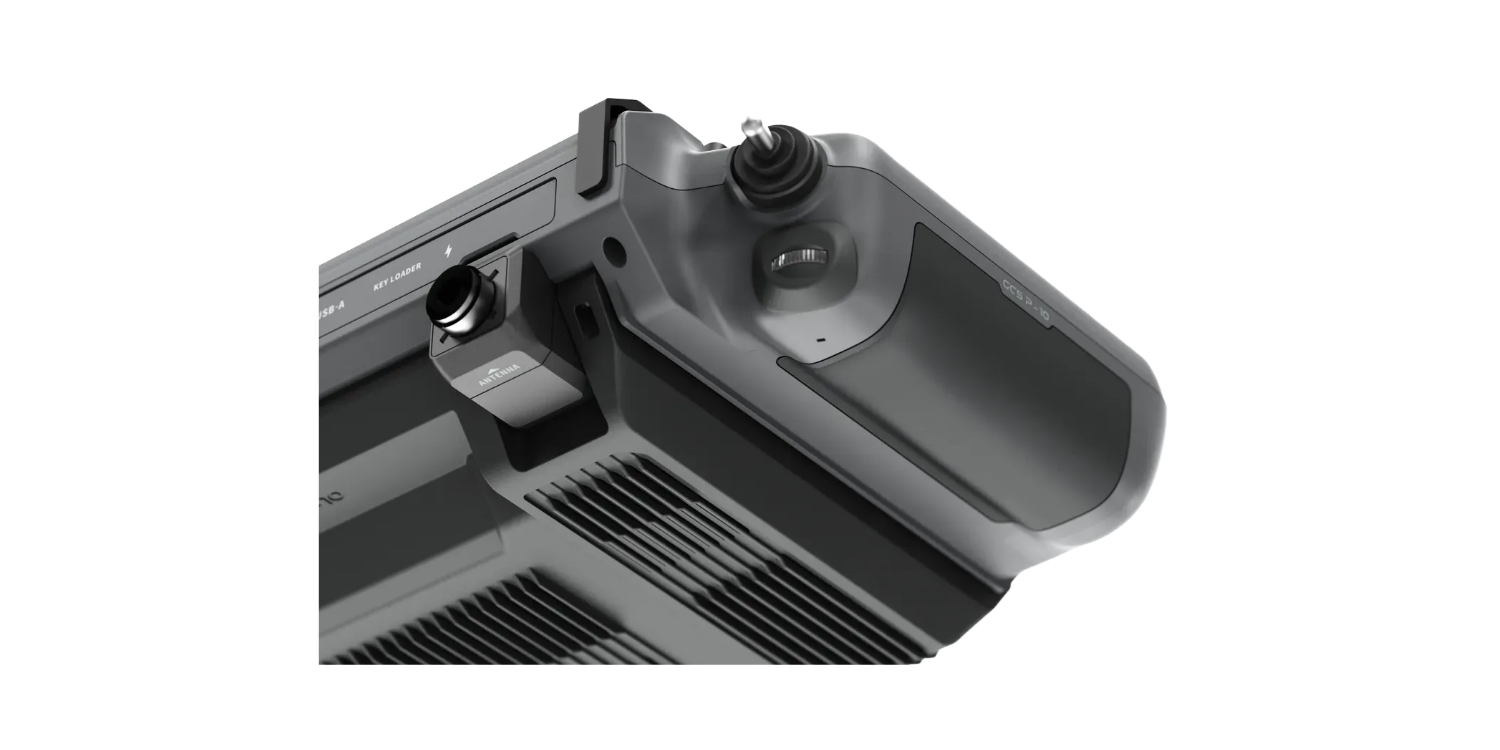

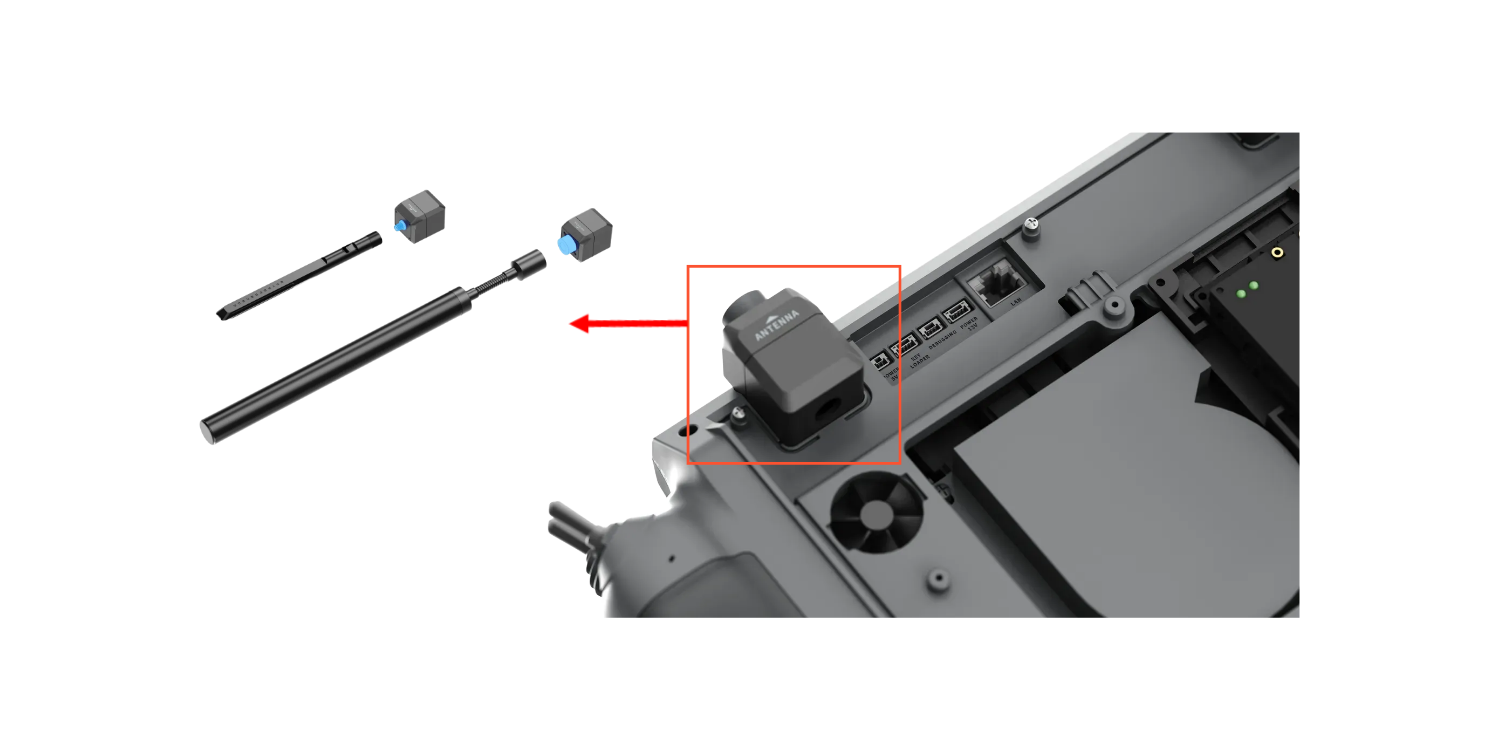

Antenna Interface Flexibility
Replaceable SMA-type and N-type antenna connectors
Specification
| Weight | 2.5kg (w/o Ant) |
|---|---|
| Size | 370 x 210 x 89 mm |
| CPU | Intel Core Ultra 5 225H 14 Cores (4P + 8E + 2LPE) / 18 Threads / Up to 4.9GHz |
| GPU | Intel Arc Graphics (Arc 130T) |
| RAM | 16GB DDR5 SO-DIMM / 2 x SO-DIMM slots (Expandable up to 96GB) |
| SSD | 256GB - M.2 2280 NVMe PCIe 5.0 x4 (Up to 8TB supported) - M.2 2280 NVMe PCIe 4.0 x4 (Up to 2TB supported) |
| Network | [Wired LAN] Intel I226-V 2.5GbE (excluded for military supply configurations) [Wireless LAN] Intel® Wi-Fi BE201 (802.11be), up to 5.8Gbps (Excluded in military supply configurations) [Bluetooth] Bluetooth 5.4 (EDR up to 50Mbps) (Excluded in military supply configurations) |
| Operating System | Windows 11 Home |
| Internal MCU | [MCU] STM32F407VGT6 ARM Cortex-M4 (168MHz) [Flash] 1MB [SRAM] 192KB [ADC] 13 Channels 12-bit (Precision analog joystick input) [INTERFACE] USB OTG FS/HS, SPI, I2C, UART, CAN |
| External I/O | [USB-A] 1 × USB-A 2.0 (Military supply configuration: 1 x USB 2.0 + 1 x KCMVP Key Injector) [HDMI] 1 x 1.4 HDMI [LAN] 1 x Intel I226-V 2.5GbE [DC 5V] 1 x DC 5V switching hub for flexible data link operation [DC 12V]: 1 × DC 12V Enables flexible data link operation via a switching hub |
| Display | [Size] 10.1” [Panel Type] High-Brightness IPS LCD [Brightness] 1000 cd/m² [Resolution] 1280 x 800 |
| Power | [Battery] 2 x 16.8V 9,600mAh Li-ion (Domestic battery pack) [Charging] USB Type-C 45W charging supported (approx. 3.5 hours) [Operating Time] Approx. 6 hours |
